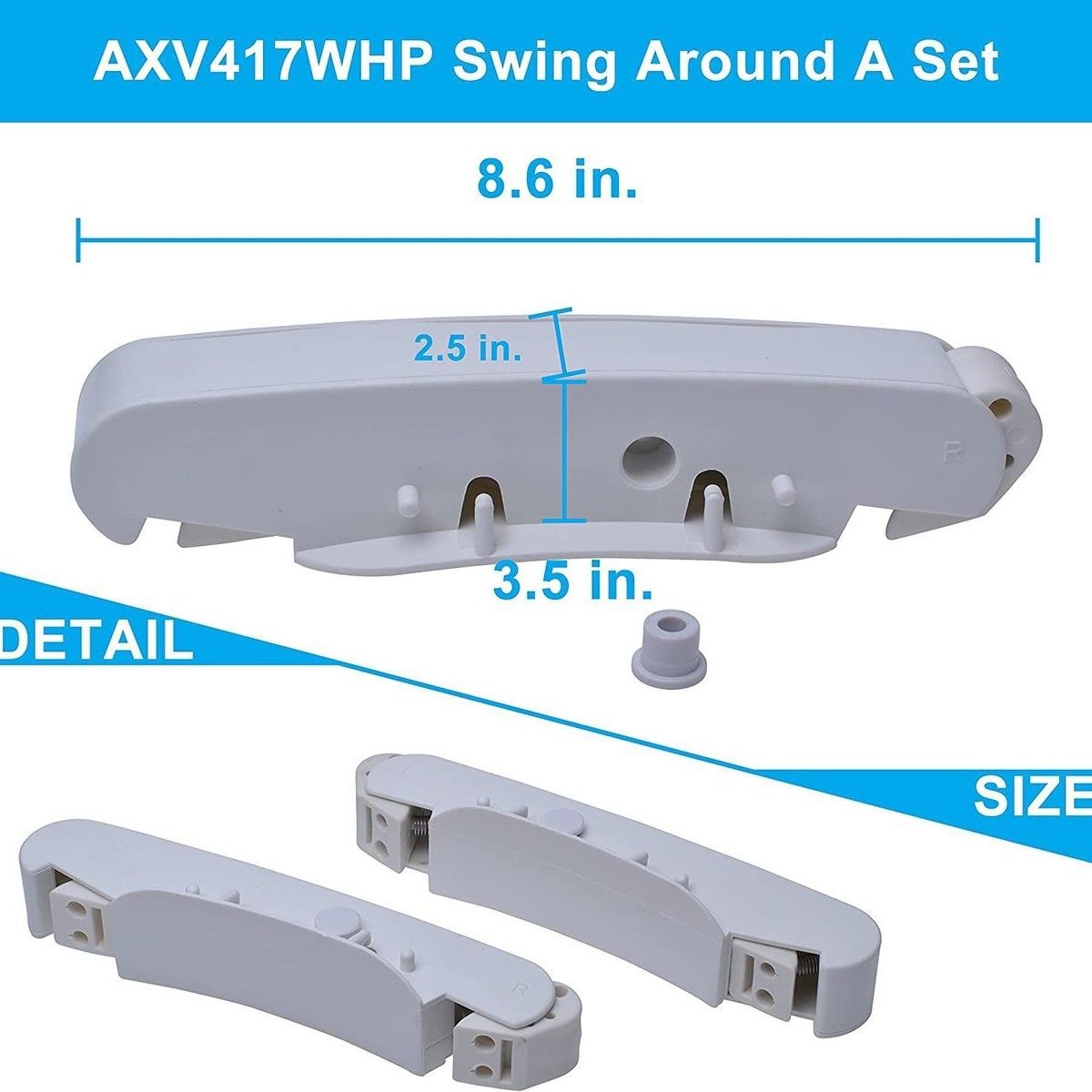

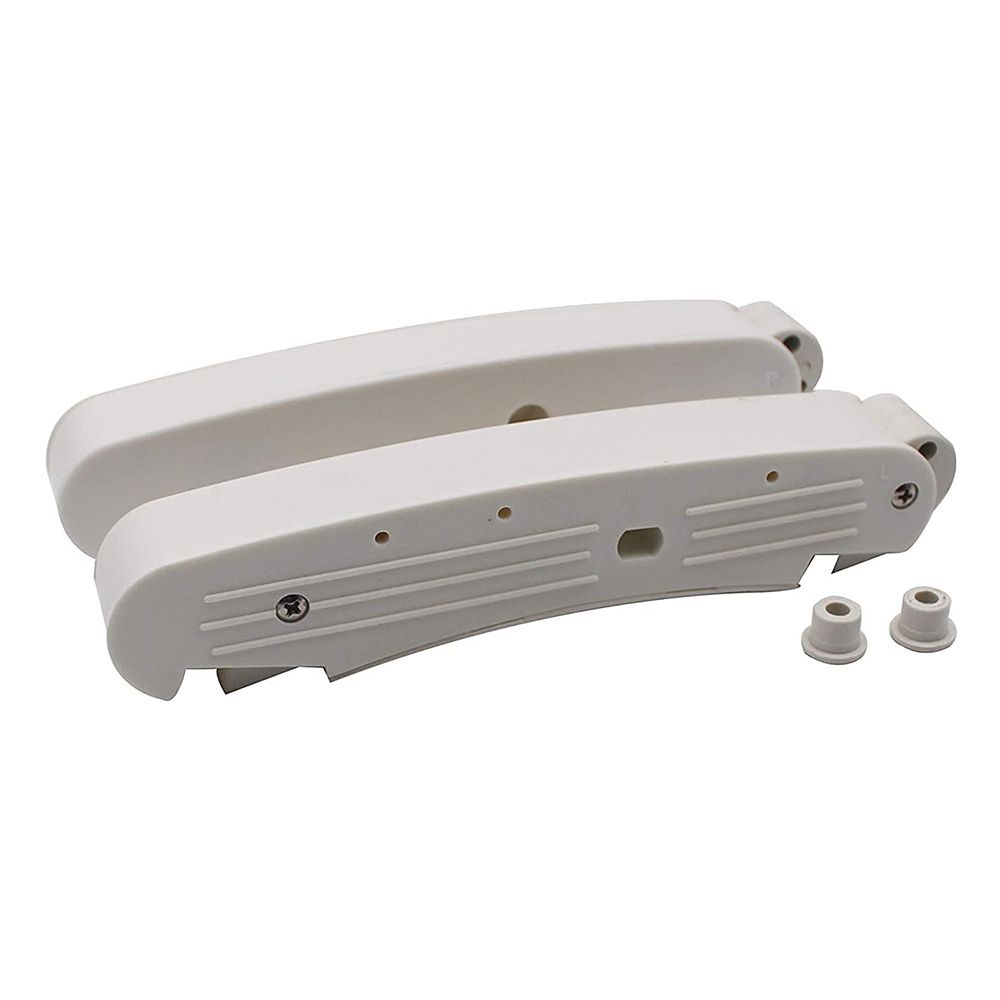

AXV417WHP Navigator Pod Kit for Hayward Pool Vacuum Cleaner, Designed for Hayward Navigator Pool Vac Ultra Pool Cleaners, White

• Compatibility: This pod kit is designed to be compatible with most Hayward Navigator cleaner parts. Will fit the Navigator, Goby and the Pool Vac Ultra
• Assembly (Step 1): To remove the pods, first turn the cleaner right side up and, using a flat screwdriver, pry the pod plug off the right pod. This will expose the end of a hex screw that secures the pod to the lower body of the cleaner.
• Assembly (Step 2): Using a 1/4" hex socket wench, remove the screw from the pod. You will need a thin wall socket to reach the head of the screw. Keep track of the small washer that is under the head of the screw. It may be stuck at the bottom of the screw hole.
• Assembly (Step 3): The pod is attached to the square end of the right A-Frame. Pull the pod off of the end of the A-Frame.
• Assembly (Final Step): To attach the new pod, reverse the sequence described above. The pods are marked "R" and "L". Make sure you select the "R" pod. Press the new pod onto the end of the A-Frame. Secure the pod with the hex screw - make sure you include the small washer. Insert the pod plug and tap it in with the end of the screwdriver. Repeat steps 1-4 to replace the left pod.
