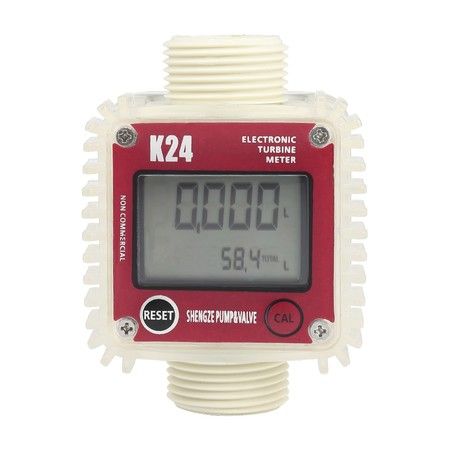

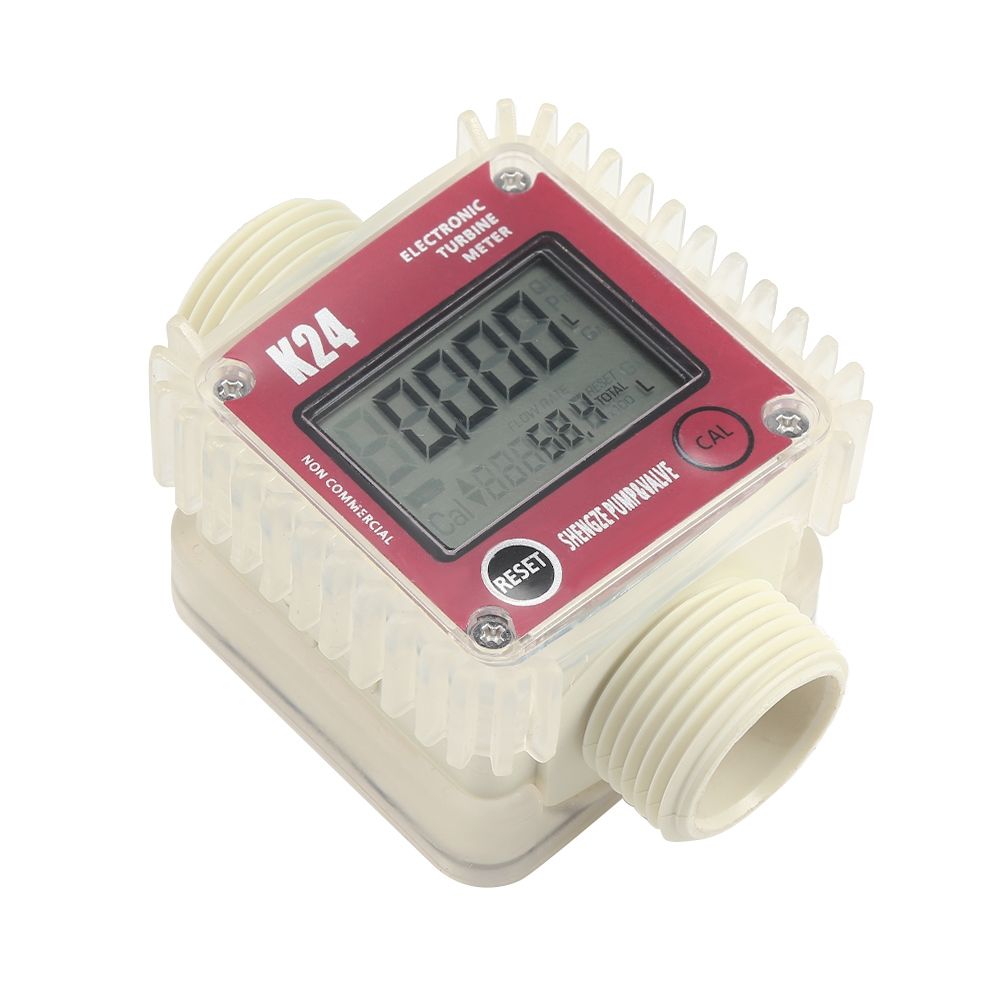

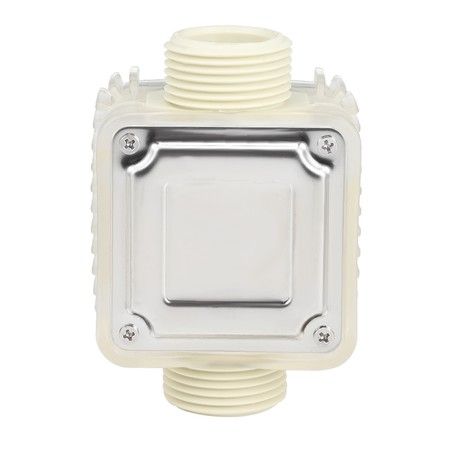

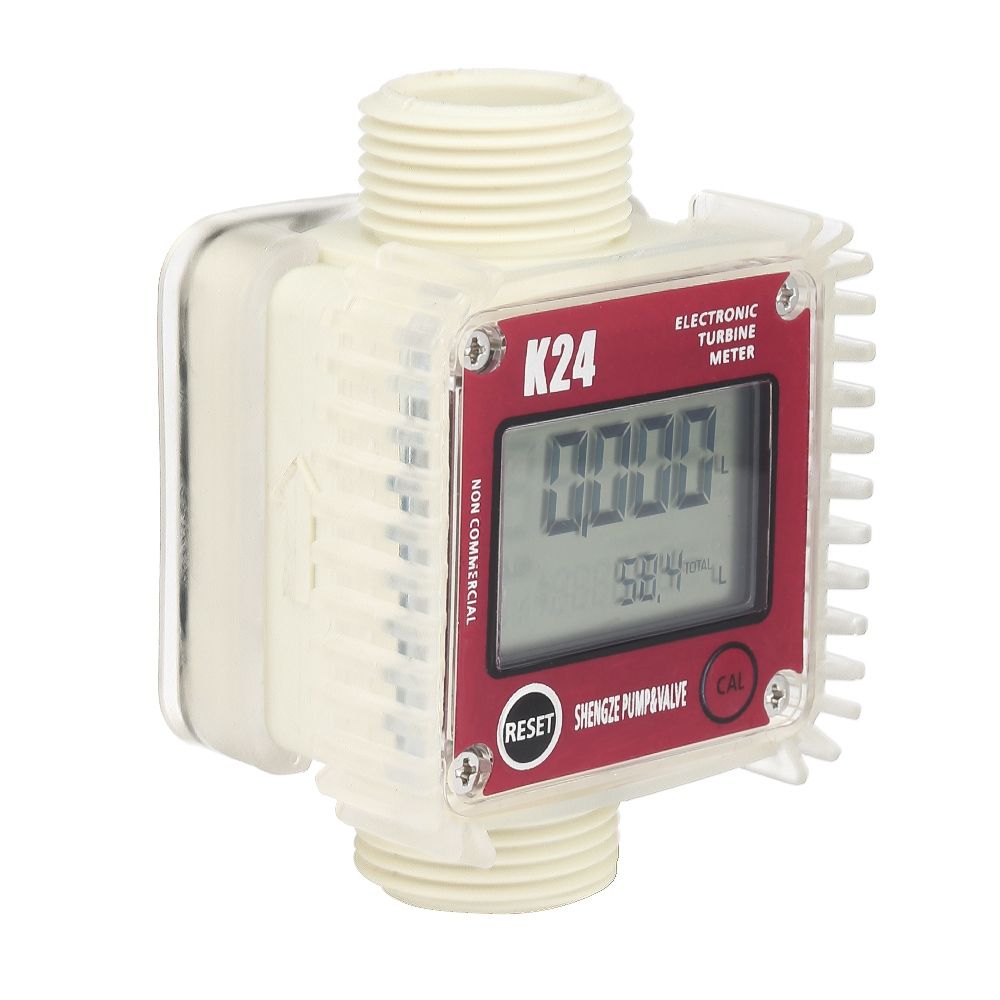

Precise Liquid Measurement K24 Digital Turbine Flow Meter for Gasoline, Diesel, Kerosene, and Chemicals

Precision Measurement at Your Fingertips: The Advanced Flow Meter

Introducing the cutting-edge Flow Meter, meticulously engineered to deliver unparalleled accuracy and reliability. Its modular design ensures seamless integration, while its compact size and stable performance make it an ideal solution for a wide range of applications.

Exceptional Features

1.Compact and robust construction for easy installation and durability
2.High-definition display provides clear and intuitive readings
3.Measures both instantaneous and cumulative flow with precision
4.Versatile compatibility for measuring various liquids, including diesel, kerosene, gasoline, and urea

Technical Specifications

1.Operating voltage: 2.3 - 3.3V
2.Connection caliber: 1" NPT
3.Maximum working pressure: 20bar
4.Unit of measurement: L, gal, pt, qt
5.Single count range: 0.00 - 9999.9
6.Battery type: 2 x AAA battery (built-in)
7.Standby time: 2 years
8.Measurement accuracy: ±1%
9.Flow range: 10 - 120L/min
10.Repeatability: ±0.5%
11.Total cumulative count: 0 - 999999.9

Applications

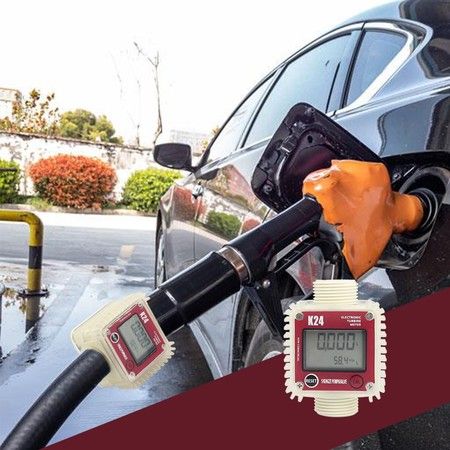

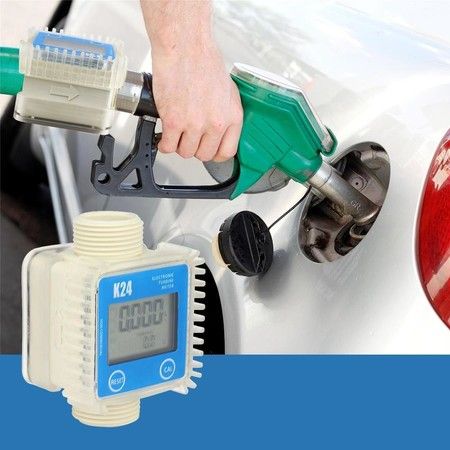

The Flow Meter finds diverse applications in industries such as oil, chemical, medical, food, and transportation. Its precision measurements ensure accurate monitoring and control of liquid flow rates.
