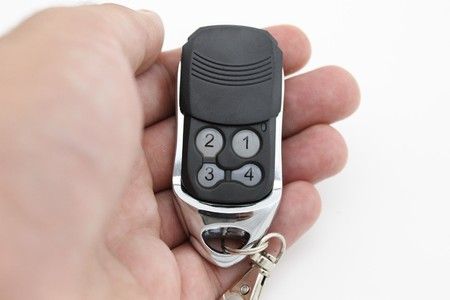

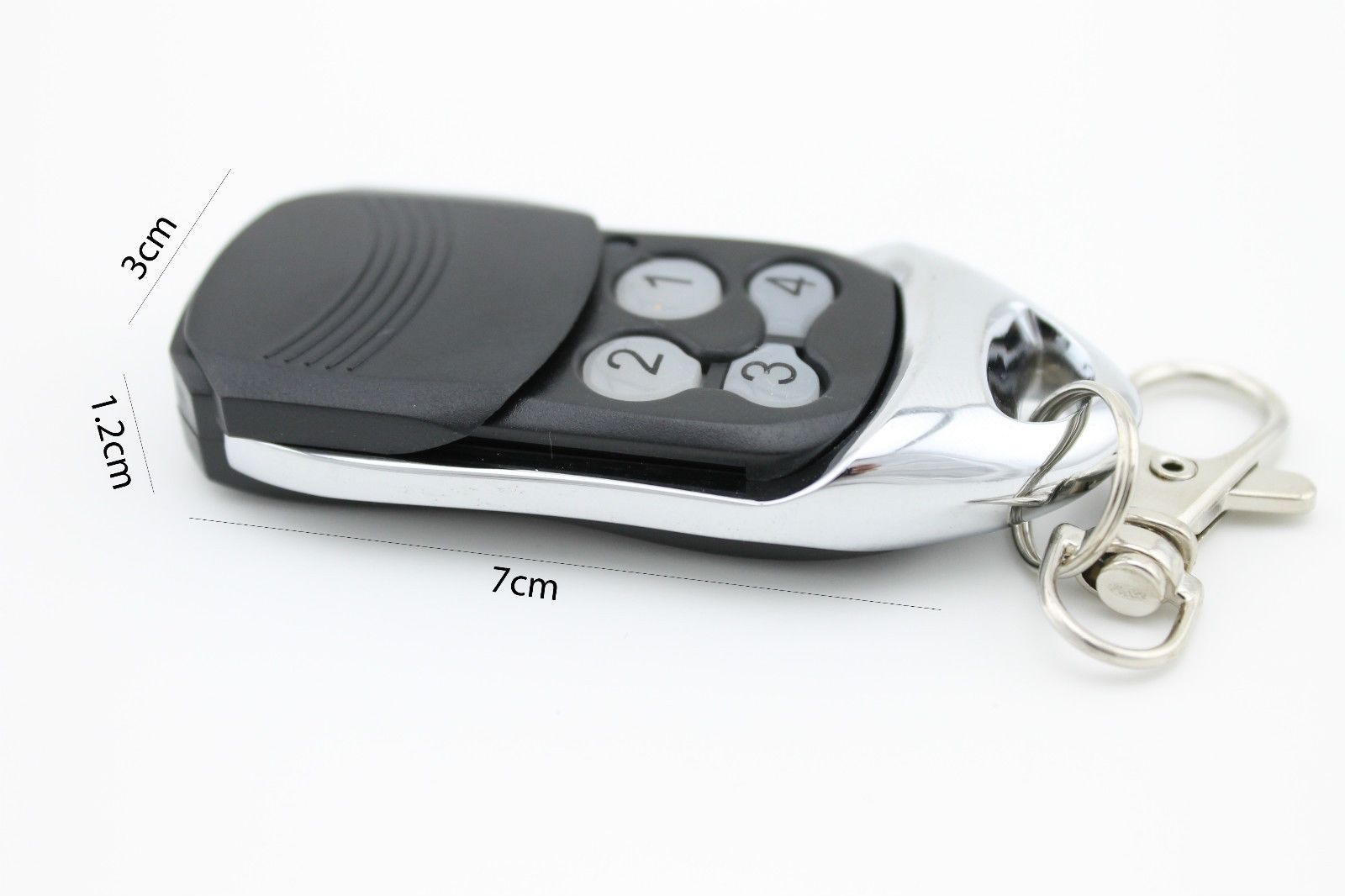

Universal Garage Door Remote for ATA PTX4 Garage Door Remote control Transmitter 4 Buttons Garage Door Remote Controller

COMPATIBLE / REPLACEMENT REMOTE FOR ATA

Compatible list:
PTX-4

PTX-4 Pink

TX-5

Compatible with receivers:
CRX-1
CRX-2
GDO-2v5
GDO-2v6
GDO-2v7
GDO-4v3
GDO-4v4

GDO-4v5

GDO-4v6
GDO-6v1
GDO-6v2
GDO-7v1
GDO-8v1
GDO-8v2
GDO-9v1

AM receiver SecuraCode CRX-1 CRX-2 UHF stand-along receivers.

And we make the PTX-4 replacement remote which can replace PTX-4BR, PTX-4BG, PTX-4PP.

Specifications:

Decoder IC - Rolling Code.

Frequency - 433.92MHz.

Operating voltage - 12v A27 ( battery NOT included)

Transmit distance - 25-50m in open space. Open space means no any interference. No walls, no doors, no trees or any other obstructions. Interference like garage door or brick wall can reduce remote control range significantly.

Programming instruction:

1. Open the casing of your receiver. It is located next to your motor.

2. On the receiver circuit board, press the programming button and let it go (ENR, MEMO, PROG, REC according to the model) The LED light on the receiver illuminates or blinks.

3. Press a button on your new remote control for 1 second.

4. Let the button go. The LED light on the receiver turns off immediately or in the following 10 seconds according to the model.
